Mr. Steam CX Steam Generator Package | For 100 to 1000 Cubic Feet Steam Rooms
$7,800.00 - $10,920.00
Commercial Steam Generator Package
The MrSteam CX Generator Package delivers powerful, quiet performance with minimal maintenance, ideal for commercial steam environments. Featuring a stainless steel tank, AutoFlush system, Commercial SteamHead, Condensation Pan, and an intuitive CX touchscreen control, it’s designed for reliable, on-demand steam with flexible installation up to 60 feet away.
Built in the USA and available in multiple phase power configurations (208V, 240V, 480V), this package offers efficient operation and lasting performance. A complete solution for wellness spaces that demand both durability and luxury.
Made for spaces up to 360 cubic feet.
Sizing
| kW Rating | Room Volume |
|---|---|
| 9 kW | 1 – 360 ft³ |
| 12 kW | 361 – 500 ft³ |
| 15 kW | 501 – 600 ft³ |
| 20 kW | 601 – 800 ft³ |
| 24 kW | 801 – 1000 ft³ |
Features

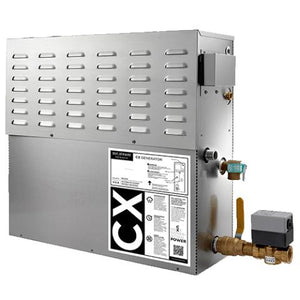

CX Generator
- Industrial-grade, large diameter, serviceable heating element
- Electronic water-level control system
- Stainless steel jacket prolongs life
- Quieter than a pressurized system
- Program to preheat the steam room at the start of each day
- Internal temperature shut-off to prevent low water conditions and integral high water cut-off

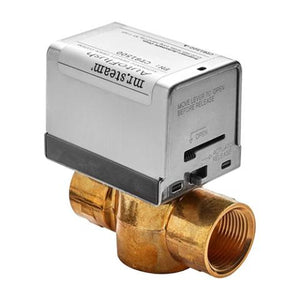

- Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
- Compact size offers more flexibility with room design and straightforward installation
- All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
- Designed for commercial applications that require continuous or near continuous use so they are available to use all day
- Dimensions: 33.9"L x 7.9"W x 22"H (including factory-installed AutoFlush System)

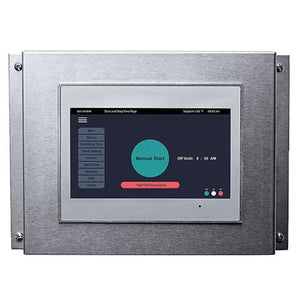

CX Control
- 7” color touch screen control with menu driven user interface
- Easily set on/off time and view system status while the unit is running
- Controls multiple CX Generators in series
- Dimensions: 7.1"L x 1.6"W x 5.3"H
Commercial SteamHead
- Complete with polycarbonate Acrylic Shield
- Comes in a Polished Chrome finish
- No assembly of moving parts required
- Dimensions: 3.1”Diameter x 1.8”W
Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface with steam generator placed inside
- Dimensions: 33"L x 1.5"W x 9"H

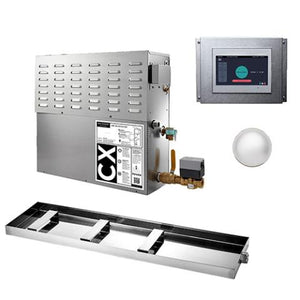

Package Includes
CX Generator
- CX Generator
- Installation and Operation Manual
- 1-Year Limited Warranty
CX Control
- CX Control
- 1-Year Limited Warranty
Commercial SteamHead
- Commercial SteamHead
- 1-Year Limited Warranty
Condensation Pan
- Condensation Pan
- 1-Year Limited Warranty
Specifications
| Model | CX0360-CX1000 |
|---|---|
| Construction Material | Stainless Steel |
| Installation Type | Hardwired |
| Kilowatt Rating | 9kW-24kW |
| Wattage | 9000-24000 |
| Water Supply Connection | 3/8" NPT |
| Drain Connection | 1" NPT |
| Safety Valve Connection | 3/4" NPT |
| Minimum Cubic Feet | 0 |
| Maximum Cubic Feet | 1000 |
| Product Dimensions | 33.9"L x 7.9"W x 22"H (including factory-installed AutoFlush System) |
| Shipping Weight | 60 lbs |
