Mr. Steam CT Steam Generator Package
$5,520.00 - $7,520.00
Steam Shower Generator Package w/ iTempo Control and Aroma SteamHead

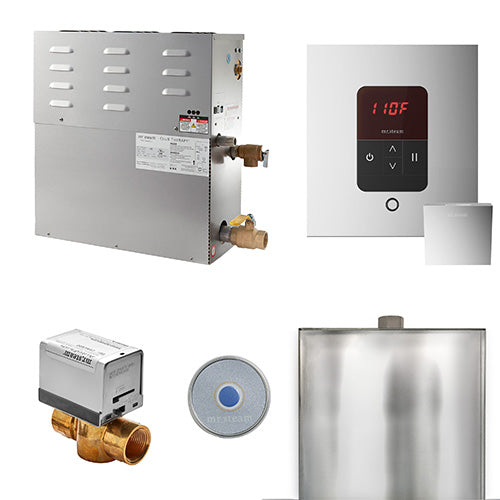

The Mr.Steam CT Day Spa Steam Shower Generator Package provides spa facilities with high performance and low maintenance steam room solutions. This collection comes complete with a CT Steam Generator, iTempo Control, Aroma Designer Finish SteamHead, SteamStop Button, AutoFlush System, and Condensation Pan.
Sizing
| kW Rating | Room Volume |
|---|---|
| 6 kW | 1 – 107 ft³ |
| 9 kW | 108 – 257 ft³ |
| 12 kW | 258 – 411 ft³ |
| 15 kW | 412 – 482 ft³ |
Features
CT Steam Generator
- High performance and low maintenance
- 240V/1PH operation
- Stainless steel tank inside and out
- Electronic water-level system
- Industrial-grade heating elements
- Durable electronic components
- Low voltage safety control circuits
- Full-port drain valve
- Compact size to fit in small areas
- Express Steam starts steam quick and maintains water temperature
- Temperature Probe MSTS allows for temperature adjustment from remote control location
- Dimensions: 17"W (43 cm) × 7.9"D (20 cm) x 18.8"H (48 cm)
- Limited 1-year warranty
iTempo Control
- Comes with a matching Aroma Designer Finish SteamHead
- Works with the SteamLinx Module and Mobile App
- Display lets you program the temperature and get comfortable
- Easily mount and install your control snug to the wall
- Dimensions: 4.5"W (11 cm) x 0.3"D (1 cm) x 5"H (13 cm)
- Limited 2-year warranty
Aroma Designer Finish SteamHead
- Square style in a polished chrome finish
- Classic design
- Even distribution of steam
- Remains cool to the touch
- Has an oil reservoir at the top for essential oils
- No assembly of moving parts required
- Dimensions: 3"W (8 cm) x 0.9"D (2 cm) x 2.8"H (7 cm)
- Limited 2-year warranty
SteamStop Button
- On/off simple operation
- Suitable for use inside or outside the steam room
- Low profile and voltage
- Dimensions: 1.5"Diameter (4 cm) x 0.1"D (1 cm)
- Limited 1-year warranty
AutoFlush System
- Automatic self-cleaning system that promotes a long and healthy life for steam generators
- Flushes old water and impurities after every steam shower
- Quietly flushes through a 1" electronically-activated valve
- Simple plug and play installation
- Dimensions: 4"W (10 cm) x 2.4"D (6 cm) x 4.4"H (11 cm)
- Limited 2-year warranty
Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface beneath the steam generator
- Built-in brackets raise the steam generator above the bottom of the pan
- Dimensions: 25"W (64 cm) x 9"D (23 cm) x 1.5"H (4 cm)
- Limited 2-year warranty
Package Includes
CT Steam Generator
- Steam Generator
- Installation and Operation Manual
- 1-Year Limited Warranty
iTempo Control
- Control
- 30 ft Control Cable
- Tube of Silicone Sealant
- 2-Year Limited Warranty
Aroma Designer Finish SteamHead
- SteamHead
- 2-Year Limited Warranty
SteamStop Button
- Button
- 1-Year Limited Warranty
AutoFlush System
- AutoFlush Valve with Cord
- 2-Year Limited Warranty
Condensation Pan
- Condensation Pan
- 2-Year Limited Warranty
Specifications
|
Model |
CT |
|
Construction Material |
Stainless Steel |
|
Installation Type |
Hardwired |
|
Kilowatt Rating |
6kW |
|
Voltage |
240 |
|
Phase |
1 |
|
Drain Connection |
1" NPT |
|
SteamHead Connection |
3/4" NPT |
|
Water Supply Connection |
3/8" NPT |
|
Width |
17" (43 cm) |
|
Depth |
7.9" (20 cm) |
|
Height |
18.8" (48 cm) |
|
Weight |
53 lbs (24 kg) |
|
Model |
ITEMPO |
|
Construction Material |
Plastic, Metal, Electronics |
|
Installation Type |
Hardwired |
|
Display |
Digital Characters |
|
Interface |
Push Buttons |
|
Width |
4.5" (11 cm) |
|
Depth |
0.3" (1 cm) |
|
Height |
5" (13 cm) |
|
Weight |
5 lbs (2 kg) |
|
Model |
STEAMHEAD 104516 (SQ) |
|
Construction Material |
Brass |
|
SteamHead Connection |
3/4" NPT |
|
Width |
3" (8 cm) |
|
Depth |
0.9" (2 cm) |
|
Height |
2.8"H (7 cm) |
|
Weight |
0.7 lbs (1 kg) |
|
Model |
STEAMSTOP |
|
Diameter |
1.5" (4 cm) |
|
Depth |
0.1" (1 cm) |
|
Weight |
2 lbs (1 kg) |
|
Model |
AUTOFLUSH CT81500 |
|
Width |
4" (10 cm) |
|
Depth |
2.4" (6 cm) |
|
Height |
4.4" (11 cm) |
|
Weight |
3 lbs (1 kg) |
|
Drain Valve |
1" NPT |
|
Construction Material |
Aluminum and Brass |
|
Model |
CONDENSATION PAN 103867 |
|
Construction Material |
Stainless Steel |
|
Drain Fitting |
3/4" NPT |
|
Width |
25" (64 cm) |
|
Depth |
9" (23 cm) |
|
Height |
1.5" (4 cm) |
|
Weight |
3 lbs (1 kg) |
