Mr. Steam MS-R Steam Generator
Type: Steam Shower Generator
$2,153.00 - $3,360.00$3,000.00 - $4,200.00

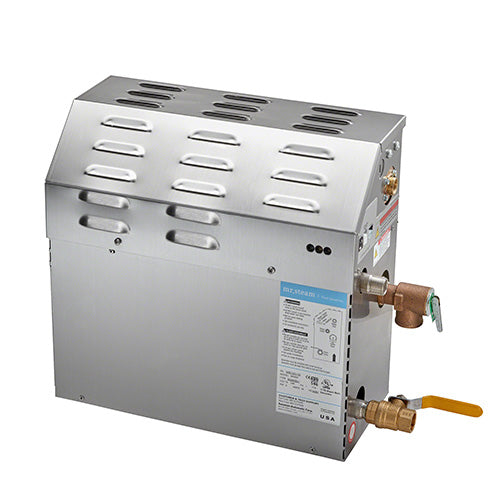

Mr. Steam MS-R Steam Shower Generator
The Mr.Steam MS Steam Shower Generator is engineered to provide years of clean, quiet, reliable, and efficient operation. Designed for small sized rooms, this generator features the latest steam shower technology and advanced microprocessor operating system.
Constructed of corrosion-resistant stainless steel, the MS Steam Generator is also equipped with industrial-grade heating elements, LED light indicators for diagnostics, durable electronic components, and a precision temperature probe.
The compact size of the MS Steam Generator allows you to install it conveniently out of sight, such as closets, cabinets, insulated attics, or under a sealed bench.
Created to save water and energy, the MS Steam Generator uses less than 2 gallons of water vs 40 gallons of water in an ordinary bath.
The optional Express Steam feature is equipped with a built-in thermostat that starts steam in a fraction of the time and maintains the water temperature, allowing you to start steaming quickly.
Required Controls and Packages sold separately
Sizing
| kW Rating | Room Volume |
|---|---|
| 5 kW | 1 – 71 ft³ |
| 6 kW | 72 – 107 ft³ |
| 7.5 kW | 108 – 161 ft³ |
| 9 kW | 162 – 257 ft³ |
Features
- Quiet and efficient
- 240V/1PH operation
- For small sized rooms
- Advanced microprocessor operating system
- Corrosion-resistant stainless steel tank
- Industrial-grade heating elements
- LED light indicators for troubleshooting
- Durable electronic components
- Low voltage safety control circuits
- Compact size to fit in small areas
- Optional Express Steam starts steam quick and maintains water temperature
- Dimensions: 14.5"W (37 cm) × 6.8"D (17 cm) x 14.8"H (38 cm)
- Limited lifetime warranty
Package Includes
- Steam Generator
- Installation and Operation Manual
- Lifetime Limited Warranty
Specifications
|
Model |
MS-R |
|
Construction Material |
Stainless Steel |
|
Installation Type |
Hardwired |
|
Voltage |
240 |
|
Phase |
1 |
|
Drain Connection |
1/2" NPT |
|
Water Supply Connection |
3/8" NPT |
|
SteamHead Connection |
3/4" NPT |
|
Width |
14.5" (37 cm) |
|
Depth |
6.8" (17 cm) |
|
Height |
14.8" (38 cm) |
|
Weight |
27 lbs (12.25kg) |
